GraphQL vs REST: When I Choose Which (And Why)

1. Introduction: It's About Results, Not Religion

The tech community loves a good debate. REST vs GraphQL is one of those debates that can get very heated. People pick sides and defend their choice like it's a personal belief. I've been on both sides of this conversation across 20+ years in software engineering, and I've learned one thing above all: the right answer is always the one that delivers business results.

In my career, from building banking MVPs and scaling fintech platforms that handle hundreds of thousands of daily transactions, to building B2B collection systems, I've used both REST and GraphQL in production at scale. This article is not about which one is "better." It's about sharing real experience on when each one makes sense. More importantly, it's about when switching from one to the other actually helped us increase revenue, reduce costs, and onboard partners faster.

2. The Real Problems with REST

REST is the backbone of the modern web. It's reliable, well-documented, and understood by almost every developer. I've built many systems on REST APIs, from Java/Spring Boot backends to Node.js microservices. REST works. But at scale, some problems become impossible to ignore.

2.1 Over-Fetching: Paying for Data Nobody Reads

This is the most discussed problem, but few teams measure the actual impact. Let me give you a real example:

Imagine a collections platform that manages debit records. The REST endpoint GET /api/debts/{id} returns a full debt object:

{
  "id": "abc123",
  "debtor_name": "John Doe",
  "debtor_cpf": "123.456.789-00",
  "debtor_email": "john@email.com",
  "debtor_phone": "+55 11 99999-0000",
  "debtor_address": { "street": "...", "city": "...", "state": "..." },
  "original_amount": 1500.00,
  "current_amount": 1650.75,
  "interest_rate": 0.033,
  "penalty_rate": 0.02,
  "due_date": "2025-06-15",
  "status": "overdue",
  "creditor_id": "xyz789",
  "creditor_name": "FinCorp",
  "creditor_cnpj": "12.345.678/0001-00",
  "portfolio_id": "port-001",
  "last_contact_date": "2025-11-20",
  "contact_attempts": 7,
  "payment_history": [...],
  "negotiation_history": [...],
  "internal_notes": "...",
  "created_at": "2025-01-10T10:30:00Z",
  "updated_at": "2025-12-01T14:22:00Z"
  // ... 20+ more fields
}

But the frontend dashboard showing the overview list only needs: debtor_name, current_amount, status, due_date, and creditor_name. That's 5 fields out of 40+.

Now multiply that by 400,000+ records processed daily. Every single API call sends about 35 unnecessary fields per record. That's not just a design problem you discuss on a whiteboard. That's a real cost on your AWS bill and real latency on your user's screen.

2.2 Under-Fetching: Too Many API Calls

The opposite problem is also painful. Consider a mobile app that needs to show a debtor's profile screen with their debt details, payment history, and the creditor's contact information. In REST, this usually requires:

1. GET /api/debtors/{id} to get debtor info
2. GET /api/debtors/{id}/debts to get their debts
3. GET /api/debts/{debtId}/payments to get payment history for each debt
4. GET /api/creditors/{creditorId} to get creditor info

That's 4 HTTP calls minimum. If the debtor has multiple debts, the payments call multiplies. On a mobile network in Brazil with unstable 4G, this means slower screens, higher drop-off rates, and lower user engagement.

2.3 Too Many Endpoints: Hard to Maintain

As your product grows, REST APIs tend to multiply. You start with clean resources:

• /api/debts
• /api/debtors
• /api/creditors

Then the frontend team needs a "summary" view, so you create /api/debts/summary. Then the mobile team needs a lighter version: /api/debts/mobile. Then a B2B partner needs debts with creditor info included: /api/debts/full. Then another partner needs something different...

Before you know it, you have 15+ endpoints for the same resource, each maintained separately, each with its own tests, each with its own documentation. I've seen this happen in every REST-heavy system I've worked on. It's not bad engineering. It's a structural limitation of the pattern.

2.4 API Versioning: The Hidden Cost

When you need to change your API without breaking existing users, REST forces you into versioning: URL-based (/api/v1/, /api/v2/), header-based, or query parameter-based. Each option has trade-offs, and keeping multiple API versions alive at the same time is one of the most expensive, low-value activities a team can do.

3. How GraphQL Solves These Problems

GraphQL changes who is in control. Instead of the server deciding what data to send, the client says exactly what it needs. This simple change fixes the main problems listed above.

3.1 Ask Only for What You Need

Using the same debt example, the client now sends:

query {
  debts(status: "overdue", limit: 50) {
    debtor_name
    current_amount
    status
    due_date
    creditor {
      name
    }
  }
}

The response contains exactly those 5 fields. Nothing more, nothing less. For 400,000+ daily records, the payload size drops a lot. We measured about a 60-70% reduction in average response size compared to the same REST endpoints.

3.2 One Request, All the Data

That 4-call problem for the debtor profile screen? With GraphQL, it becomes one request:

query DebtorProfile($id: ID!) {
  debtor(id: $id) {
    name
    email
    phone
    debts {
      current_amount
      status
      due_date
      payments(last: 5) {
        amount
        date
        method
      }
      creditor {
        name
        contact_email
      }
    }
  }
}

One HTTP call. One response. All the data the screen needs. On mobile networks, the difference is clear and easy to measure.

3.3 Schema as a Contract

GraphQL uses a strongly typed schema. Every field, every type, every relationship is clearly defined. This schema works as:

• Living documentation that is always up-to-date, because the code IS the documentation
• Agreement between frontend and backend where breaking changes are caught at build time, not in production
• Self-service API explorer where tools like GraphiQL or Apollo Studio let users explore the API without reading docs

3.4 No More Versioning

Need to add a new field? Just add it to the schema. Existing queries don't break because they don't ask for it. Need to remove a field? Mark it as @deprecated(reason: "Use newField instead"). Users see the warning and can migrate at their own speed.

Compare this with the REST approach of keeping /v1 and /v2 running together for months. In GraphQL, there is no versioning, just continuous, backward-compatible growth. In a fast-moving fintech environment, this alone saved us weeks of engineering effort per quarter.

4. B2B Partner Integration: Where GraphQL Really Shines

This is where things get interesting, and where I've seen the biggest real-world impact. When you build a platform that serves multiple B2B partners, each partner has different data needs, different systems, and different timelines.

4.1 The REST B2B Problem

With REST, onboarding a new B2B partner usually looks like this:

1. Partner A says: "We need debt data with debtor name, amount, and status."
2. You build GET /api/partners/a/debts
3. Partner B says: "We need debt data with debtor name, amount, status, AND full payment history."
4. You build GET /api/partners/b/debts
5. Partner C says: "We need everything Partner B gets, but grouped by creditor with creditor details."
6. You build... another custom endpoint.

Each partner gets a custom API. Each needs custom backend code, custom tests, custom docs, and custom maintenance. I've lived this, and at some point, the cost of onboarding a new partner is mostly engineering time, not business negotiation time.

4.2 The GraphQL B2B Solution

With GraphQL, you expose one schema. Every partner asks for exactly what they need:

Partner A's query:

query {
  debts(portfolio: "partner-a") {
    debtor_name
    current_amount
    status
  }
}

Partner B's query:

query {
  debts(portfolio: "partner-b") {
    debtor_name
    current_amount
    status
    payments {
      amount
      date
      method
    }
  }
}

Partner C's query:

query {
  creditors {
    name
    metadata { industry, contact_email }
    debts(portfolio: "partner-c") {
      debtor_name
      current_amount
      status
      payments {
        amount
        date
      }
    }
  }
}

Zero custom endpoints. Zero custom backend code. The partners get the data they need from the same schema. When Partner D arrives next month with different requirements, you don't write a single line of backend code. They just write their query.

4.3 Access Control at the Schema Level

A key concern with B2B integration is data isolation. With GraphQL, you can add field-level access control in the resolvers:

• Partner A can only see debts in their portfolio
• Partner B has access to payment history; Partner A does not
• Internal dashboards see everything; external partners see a filtered view

The access control logic lives in one place (the resolver layer), not spread across many custom REST endpoints. This is cleaner, easier to audit, and much simpler to manage when you need to follow compliance rules in the financial sector.

5. Transaction I/O and Cost Reduction at Scale

This is the section that gets the business team interested. When you process hundreds of thousands of transactions daily in the cloud, every byte counts.

5.1 The Math Behind Smaller Payloads

Let's use conservative, real-world numbers from a collections platform:

A 70% reduction in data transfer directly affects:

• AWS data transfer costs, because Data Out charges on EC2, Lambda, and API Gateway are billed per GB
• Network I/O on servers, because less data to send means lower CPU usage per request
• Client-side performance, because smaller responses are faster to process in the browser or mobile app
• CDN and caching efficiency, because smaller responses are cached more easily

5.2 MongoDB + GraphQL: A Natural Combination

When your database is document-based (MongoDB) and your API layer lets clients ask for only the fields they need (GraphQL), you get a powerful combination:

• Database-level projection: GraphQL resolvers can ask MongoDB to return only the needed fields. This means the database reads less data from disk.
• Less processing: Smaller documents from MongoDB means less memory and CPU spent on converting BSON to JSON.
• Efficient queries: Complex requests that would need multiple REST calls and client-side data joining can be solved with MongoDB aggregation pipelines, all triggered by a single GraphQL query.

5.3 Impact on Serverless

If you run Lambda functions or serverless compute, the impact is even bigger. Serverless pricing is usually based on execution time x memory. Smaller payloads mean:

• Faster execution time, so you pay less per call
• Less memory used, so you can pick smaller (cheaper) memory settings
• Fewer cold starts because your API layer stays lighter

6. The Pitfalls: What Can Go Wrong with GraphQL

I would not be honest or useful if I said GraphQL is a perfect solution. After running it in production for years, here are the real problems you need to be ready for.

6.1 The N+1 Query Problem

This is the most important performance trap. Look at this query:

query {
  debts(limit: 100) {
    debtor_name
    creditor {
      name
    }
  }
}

A simple implementation will:

1. Run 1 query to get 100 debts
2. Run 100 separate queries to get each creditor

That's 101 database queries for what should be 2. At 400,000 daily records, this will kill your database performance.

The fix: Use DataLoader (or similar batching tools). DataLoader collects all creditor IDs from the first query and gets them all in one batch query. This is not optional. It is essential for any production GraphQL server.

6.2 Caching Is Not Free Anymore

REST has a big advantage here: HTTP caching works out of the box. Each URL is a unique cache key. CDNs, browser caches, and reverse proxies all understand REST without extra setup.

GraphQL sends POST requests to a single endpoint (/graphql). The query is inside the request body. This means:

• Standard HTTP caching does not work
• CDN caching needs custom setup (like persisted queries with GET requests)
• You need to build application-level caching (Redis, in-memory stores) yourself

Solutions exist, like Apollo Server's automatic persisted queries, Redis response caching, and field-level cache hints. But they all require extra work. REST gives you caching for free; GraphQL makes you build it.

6.3 Query Complexity and Security

GraphQL gives the client a lot of power. A bad or careless client can send a very deep nested query:

query {
  debtors {
    debts {
      payments {
        refunds {
          audits {
            // ... 10 levels deep
          }
        }
      }
    }
  }
}

Without protection, this single query could crash your server. You must add:

• Query depth limits to reject queries that go too deep
• Query cost analysis to give weights to fields and reject expensive queries
• Rate limiting by query cost, not just by number of requests, but by how heavy each request is
• Timeouts to set hard time limits on how long a query can run

6.4 Error Handling Is Different

REST uses HTTP status codes: 200, 404, 500. Everyone understands them. GraphQL always returns 200 OK, even when there are errors. Errors come inside the response body:

{
  "data": { "debtor": null },
  "errors": [{
    "message": "Debtor not found",
    "path": ["debtor"],
    "extensions": { "code": "NOT_FOUND" }
  }]
}

This can confuse monitoring tools and alert systems. Developers used to REST might miss errors because the HTTP status is always 200. You need to plan your error handling carefully. Standard HTTP monitoring will not catch GraphQL errors automatically.

6.5 Team Learning Curve

This is often underestimated. Moving a team from REST to GraphQL requires learning:

• Schema design (types, queries, mutations, subscriptions)
• Resolver patterns and DataLoader
• New testing approaches (you can't just test URLs anymore)
• New tools (Apollo, graphql-codegen, playground environments)

In my experience, expect 2-4 weeks of slower delivery when introducing GraphQL to a team that only knows REST. The investment pays off, but it takes time.

6.6 File Uploads

GraphQL was designed for structured data queries. File uploads are not its strength. While the graphql-upload package exists, it's not as clean as a simple multipart POST in REST. For file-heavy features, we kept REST endpoints alongside GraphQL, and that works perfectly fine.

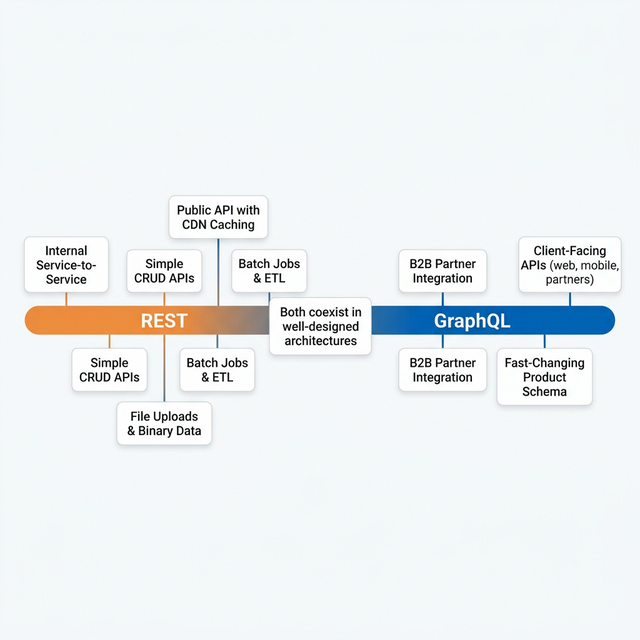

7. My Decision Framework: When to Use Which

After years of running both in production, here is the decision table I use:

8. Conclusion

GraphQL vs REST is not a yes-or-no choice. It's a spectrum. In my production systems, both live side by side. GraphQL powers the client-facing layer where flexibility and efficiency improve user experience and reduce costs. REST handles internal service communication, batch processing, and file uploads where simplicity and HTTP features are more useful.

The real skill is not mastering one or the other. It's knowing when to use which tool, having the experience to see the problems before they happen, and always measuring the impact against business results:

• Did partner onboarding get faster?
• Did infrastructure costs go down?
• Did user experience improve?
• Did the team deliver features faster?

If the answer to any of those is yes, you made the right choice.

Choose the tool that delivers results. That's always the right architecture.
